Alternating Current Electricity: From Source to Socket

Every time you plug in a device, you're connecting to something vast and unseen, a current of energy summoned from afar. Have you ever considered the hidden journey of that power traveling miles in the blink of an eye? This everyday miracle is made possible by electricity, born from the principle of electromagnetic induction discovered by Michael Faraday, the foundation of how our power stations work their magic.

1. Alternating Current Generation in Power Stations

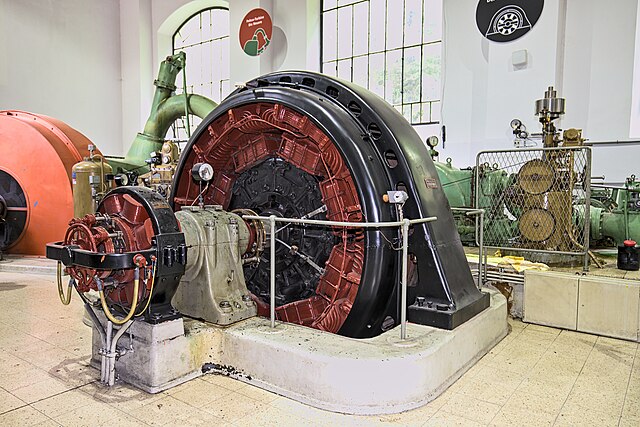

Power stations generate electricity using the basic principle of electromagnetic induction. This principle was discovered by Michael Faraday. It states that a changing magnetic flux through a conductive coil induces an electrical voltage in that coil. An electrical generator within a power plant contains two primary components: a rotor and a stator. The rotor, a rotating element, typically acts as an electromagnet. It is energised to produce a strong magnetic field. The stator, the stationary component, consists of copper wire coils.

The generation process begins when a mechanical energy source turns the rotor. This source can be a turbine driven by flowing water in hydroelectric plants, high-pressure steam in thermal power plants, wind energy in wind farms or fuel combustion. As the rotor turns, its magnetic field rotates. This rotating magnetic field then intersects the coils of the stator. The results generate magnetic flux that induces an alternating current (AC) voltage in the stator coils. This follows Faraday's law. The magnitude of the induced voltage is determined by three factors: the strength of the magnetic field, the speed of the rotor and the number of turns in the stator coils. The frequency of the alternating current, for example 50 Hz in Indonesia, is directly determined by the speed of the rotor.

Imagine a waterwheel turning in a river. This wheel is surrounded by a series of fixed water hoses. This is the stator. The rotating water wheel generates currents and waves. These disturbances propagate through the tubes. In this way the fluctuating water movement reflects the changing magnetic flux. The water pressure generated in the tubes represents the induced electrical voltage in the wire coils. A faster spinning wheel results in more rapid changes in water flow and produces greater water pressure. This illustrates how the speed of the rotor directly affects the magnitude of the voltage generated.

2. Alternating Current Transmission: Why High-Voltage Level Electricity?

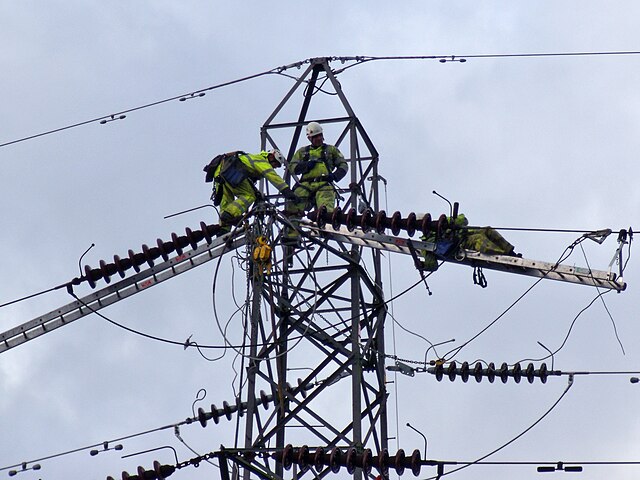

Electricity generated at power plants produced an initial relatively low voltage. But an efficient long-distance transmission necessitates a substantial voltage increase. Substations use step-up transformers to achieve this. These transformers operate on electromagnetic induction and consist of two coils: primary and secondary. The secondary coil contains more turns than the primary coil. This configuration allows significant voltage amplification. The secondary coil's voltage can reach hundreds of kilovolts.

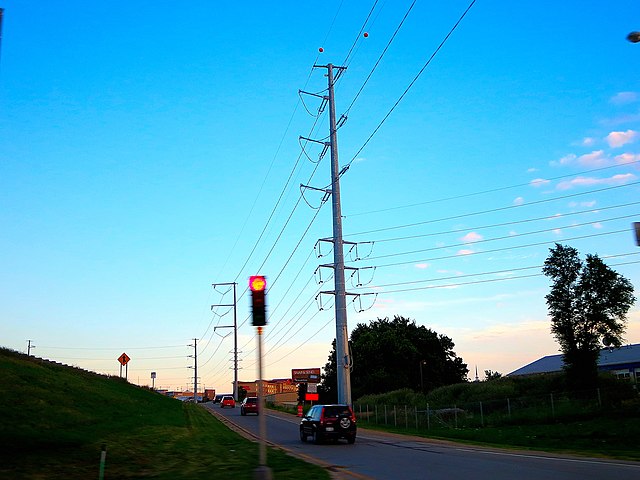

Elevated voltage in power transmission is vital for efficiency. Based on following equations:V=I x R ; P = I² x R; where V and P represent voltage and power. The current flowing through a conductor is directly proportional to the voltage. Therefore, an increase in voltage will allow a corresponding current reduction. This will significantly reduce power dissipation caused by cable resistance, which is the loss of energy in the form of heat. Thus, electrical energy can be transmitted efficiently.High-voltage AC electricity is transported via an extensive transmission network. This network consists of high-voltage power lines that connect long-distance power plants with substations closer to end users. To illustrate, consider the process of transmitting water from a reservoir or power plant to a city or consumers via a pipeline and water. The implementation of a high-capacity pump or a step-up transformer at the reservoir is an efficient solution. These devices increase the water pressure or voltage. The elevated water pressure enables water to travel rapidly through smaller pipelines or transmission cables with minimal energy dissipation due to friction over long distances.

3. Alternating Current Distribution: Delivering Power to Consumers

Medium-voltage substations reduce high-voltage AC electricity from the transmission grid to a medium voltage level. They use step-down transformers, which have a secondary coil with fewer turns than the primary coil. Medium-voltage AC electricity is then distributed to smaller substations, which are located closer to end-use consumers.

Distribution substations perform a further voltage reduction. They lower it to a standard low voltage for instance 220V in Indonesia. This voltage is safe for residential and industrial use. Low-voltage AC electricity is then distributed through a local network. This network consists of power lines on utility poles delivering electricity to homes offices and other buildings.

And the water analogy after high-pressure water or high voltage reaches the city its pressure must be reduced for safe usage. Large water tanks or substations equipped with pressure-regulating valves or step-down transformers do this. These tanks reduce the water pressure or voltage to a moderate level. Water is then directed to smaller local tanks or distribution substations within each neighborhood. In these smaller tanks the water pressure is again reduced. It becomes suitable for distribution through smaller pipes or the distribution network to individual homes.

4. Alternating Current Utilization in Residential Settings

Upon entering a residence the AC electrical flow passes through an electricity meter or kilowatt-hour meter. This device measures the electrical energy consumed by the customer. Following the meter a safety component called an MCB or Miniature Circuit Breaker is installed. The MCB is an automatic switch. It interrupts electrical flow during an overcurrent or short circuit. This safeguard prevents fires and damage to electrical appliances caused by excessive current.

From the MCB AC electricity is distributed throughout the internal wiring system. This comprises a network of cables power outlets and switches on walls or ceilings. Power outlets provide connection points for electrical appliances. These include lighting fixtures televisions refrigerators computers and other electronic devices. These devices operate safely and efficiently using AC electricity at the standardized voltage and frequency.
